JBI Titanium bolts for motorcycles are now available.

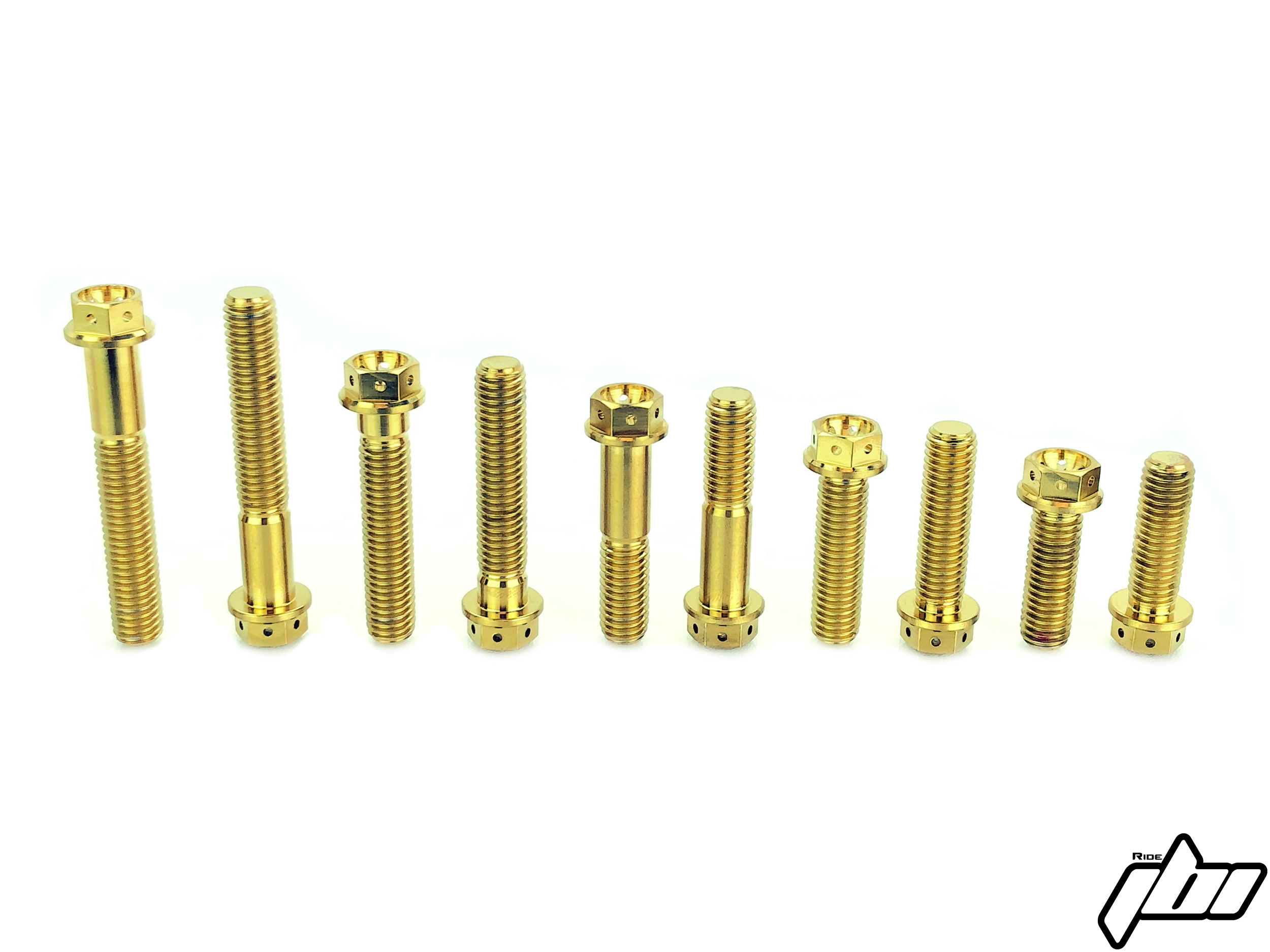

JBI Titanium bolts are available in Gold or Rainbow anodize finish.
https://www.ridejbi.com/jbi-titanium-gold-bolts/
https://www.ridejbi.com/jbi-titanium-rainbow-bolts/
JBI Titanium bolts were designed specifically for motorcycle fitment and function.
JBI Titanium bolts fit the Honda CR and CRF models, Kawasaki KX and KFX models, Yamaha YZ & YZF models, and KTM & Husqvarna models.

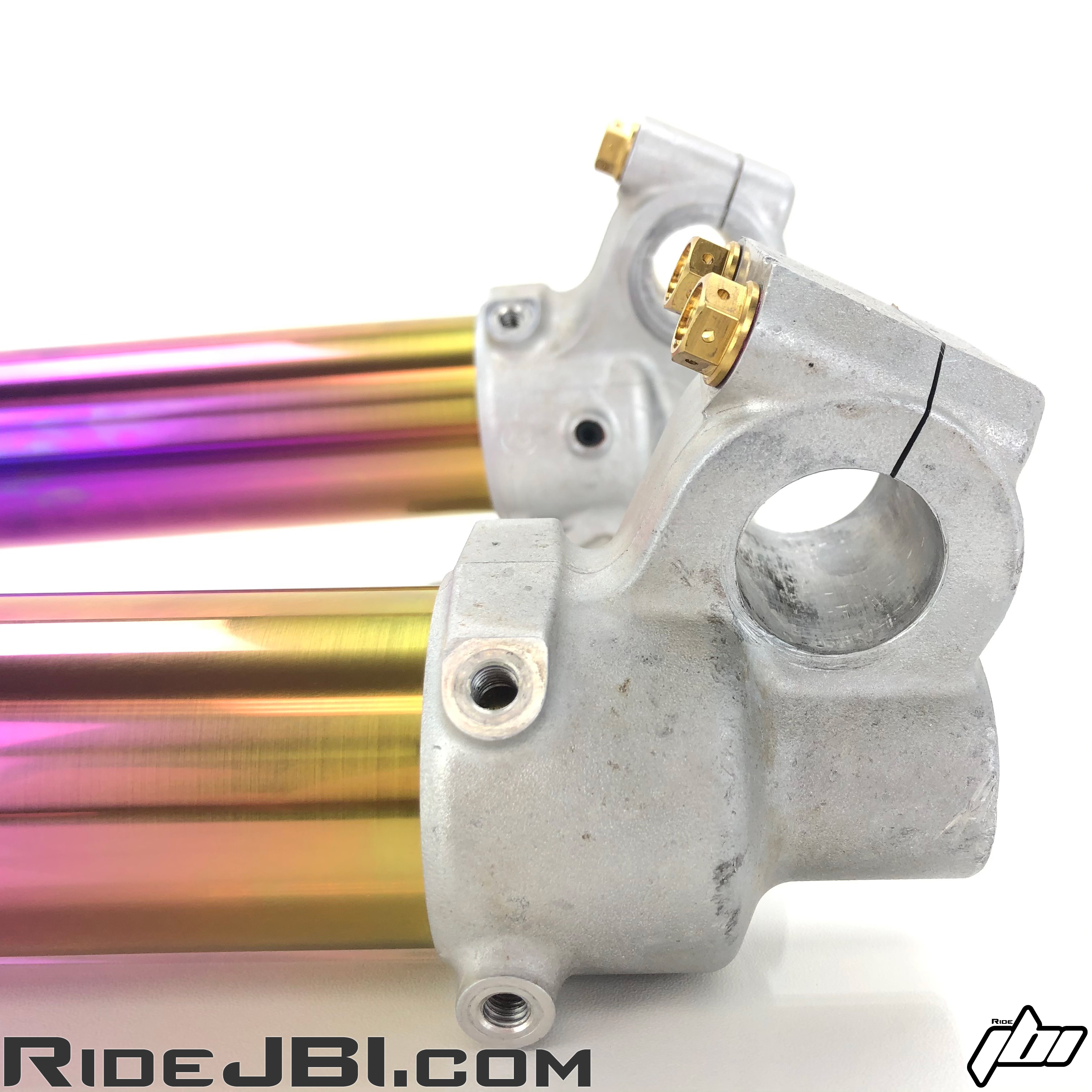

Some applications for the JBI Titanium bolts are motorcycle triple clamps, motorcycle handle bar mounts, front brake caliper mount, fork axle pinch bolts.

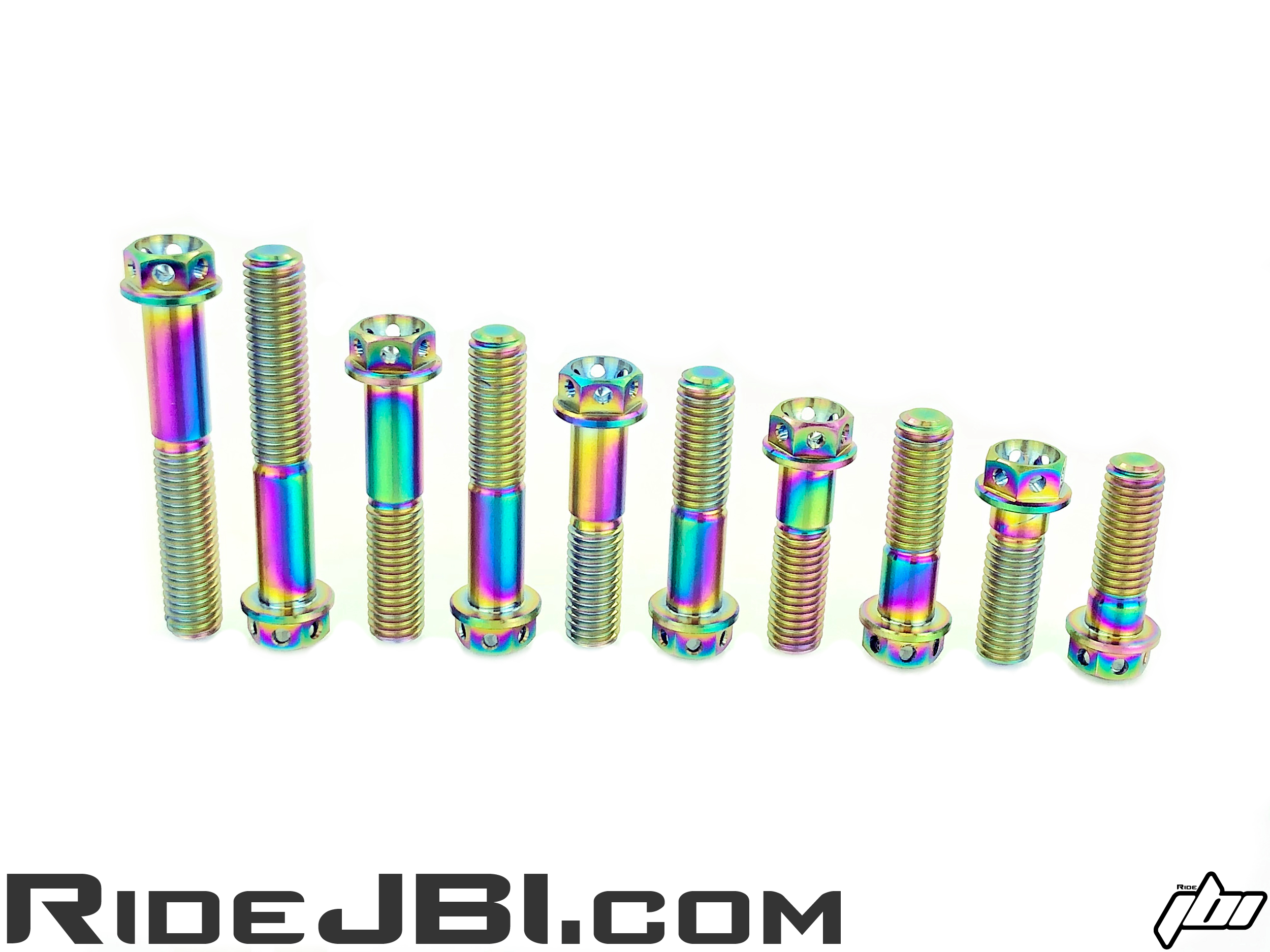

JBI Titanium Rainbow Bolts
- Grade 5 Titanium Alloy (Ti 6Al-4V)
- Rainbow anodize finish

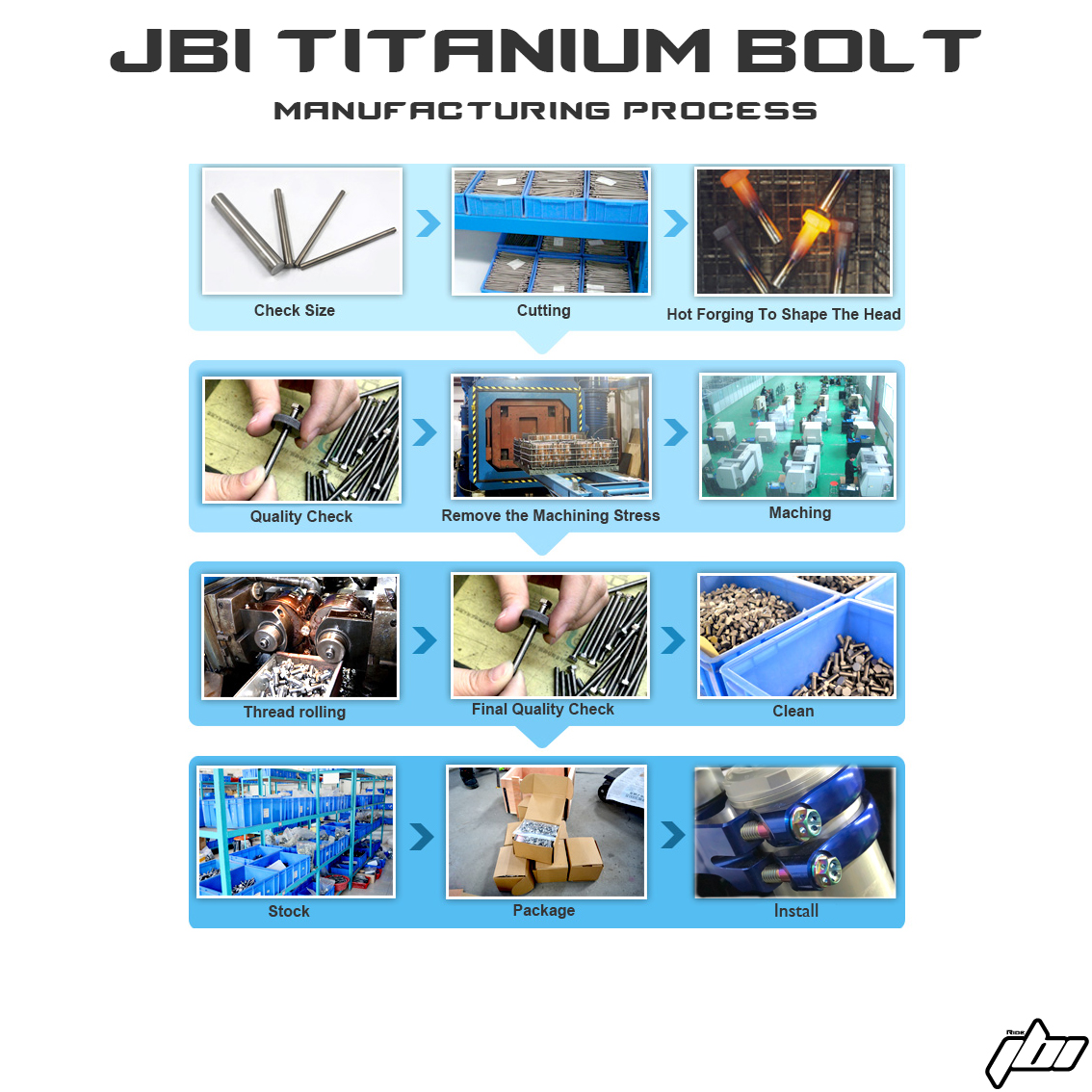

- Forged bolt head & body (best & strongest method)
- CNC rolled bolt threads (best & strongest method)
- CNC machined dished and drilled race spec bolt head (precision tool fitment)
- M8x1.25 (thread diameter x thread pitch)
- Tool size 10mm hex head
- Sold individually (1 titanium bolt)
- Length measured underneath head (See image below)
- See below for quick reference bolt fitment guide
- Ultimate tensile strength 950 MPa
- Steel 8.8 grade bolt ultimate tensile strength 830 Mpa
- Titanium features excellent corrosion resistance
- Does not rust like stock steel bolts
JBI Titanium Rainbow Bolt Weights (Approximate)
- M8x1.25-50mm : 11.4 grams
- M8x1.25-45mm : 10.4 grams
- M8x1.25-40mm : 9.4 grams
- M8x1.25x35mm : 9.0 grams
- M8x1.25x30mm : 7.4 grams
- M8x1.25x25mm : 6.4 grams
- 2002-2007 Honda CR125R/250R
- Top triple clamp bolt length 45mm (4 bolts)
- Bottom triple clamp bolt length 45mm (4 bolts)
- Fork axle pinch bolt length 40mm (4 bolts)
- Front brake caliper mount bolt length 40mm (4 bolts)
- Handle bar mount bolt length 35mm (4 bolts)
- 2004-2017 Honda CRF250R
- Top triple clamp bolt length 45mm (4 bolts)
- Bottom triple clamp bolt length 45mm (4 bolts)
- Fork axle pinch bolt length 40mm (4 bolts)
- Front brake caliper mount bolt length 40mm (2 bolts)
- Handle bar mount bolt length 35mm (4 bolts)
- 2018-2021 Honda CRF250R
- Top triple clamp bolt length 45mm (4 bolts)
- Bottom triple clamp bolt length 40mm (4 bolts)
- Fork axle pinch bolt bolt length 40mm (4 bolts)
- Front brake caliper mount bolt length 40mm (2 bolts)
- Handle bar mount bolt length 35mm (4 bolts)
- 2002-2016 Honda CRF450R
- Top triple clamp bolt length 45mm (4 bolts)
- Bottom triple clamp bolt length 45mm (4 bolts)
- Fork axle pinch bolt length 40mm (4 bolts)
- Front brake caliper mount bolt length 40mm (2 bolts)
- Handle bar mount bolt length 35mm (4 bolts)
- 2017-2021 Honda CRF450R
- Top triple clamp bolt length 45mm (4 bolts)
- Bottom triple clamp bolt length 40mm (4 bolts)
- Fork axle pinch bolt length 40mm (4 bolts)
- Front brake caliper mount bolt length 40mm (2 bolts)
- Handle bar mount bolt length 35mm (4 bolts)
- 2006-2021 Kawasaki KX250F/KX450F
- Top triple clamp bolt length 40mm (4 bolts)
- Bottom triple clamp bolt length 45mm (4 bolts)
- Fork axle pinch bolt length 40mm (4 bolts)
- Front brake caliper mount bolt length 40mm (2 bolts)
- Handle bar mount bolt length 35mm (4 bolts)
- 2016-2021 KTM & Husky 125/250/300/350/450/500
- Top triple clamp bolt length 40mm (4 bolts)
- Bottom triple clamp bolt length 50mm (4 bolts)
- Fork axle pinch bolt length 25mm (4 bolts)
- Front brake caliper mount bolt length 30mm (2 bolts)
- Handle bar mount bolt length 25mm (4 bolts)

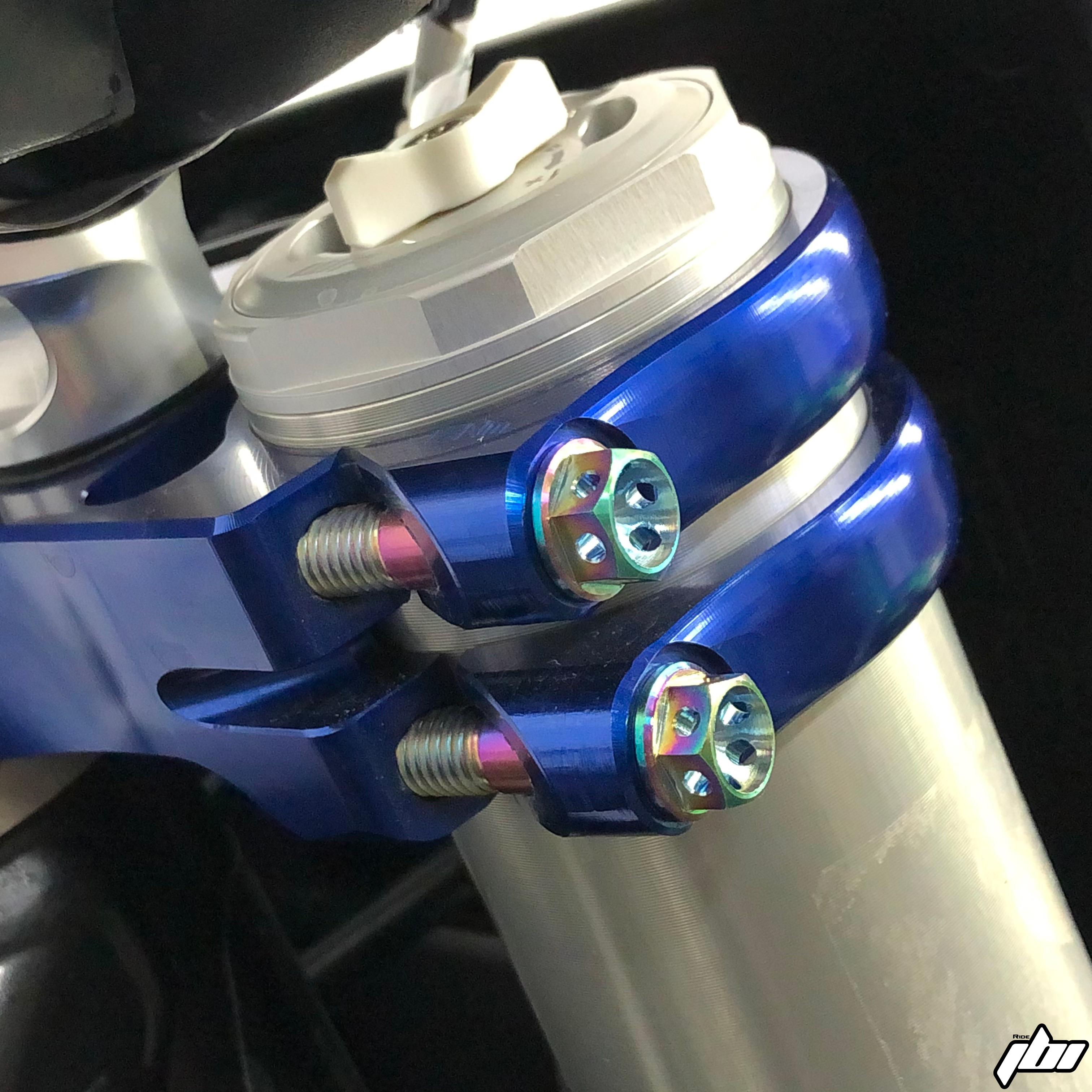

- KTM & Husqvarna Power Parts Split Triple Clamps
- Top triple clamp bolt length 40mm (4 bolts)
- Bottom triple clamp bolt length 40mm (4 bolts)
- 2006-2021 Yamaha YZ125/250 & YZ250F/YZ450F
- Top triple clamp bolt length 35mm (4 bolts)
- Bottom triple clamp bolt length 35mm (4 bolts)
- Fork axle pinch bolt length 35mm (4 bolts)
- Front brake caliper mount bolt length 35mm (2 bolts)
- Handle bar mount bolt length 30mm (4 bolts)
