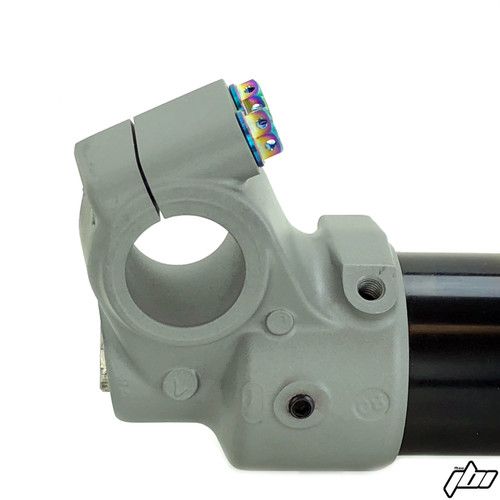

JBI Titanium Rainbow Bolts

 JBI Titanium Rainbow Bolts

• Grade 5 Titanium Alloy (Ti 6Al-4V)
• Rainbow anodize finish

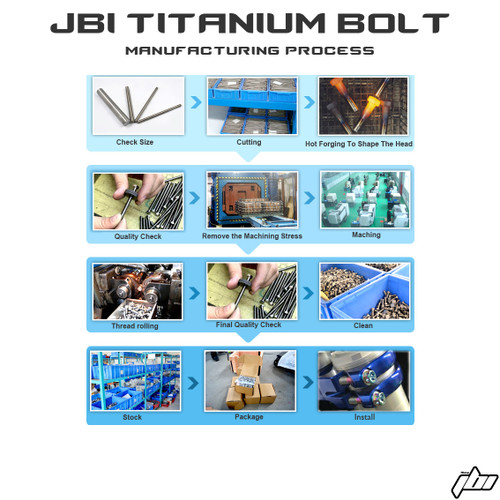

• Forged bolt head & body (best & strongest method)
• CNC rolled bolt threads (best & strongest method)
• CNC machined dished and drilled race spec bolt head (precision tool fitment)
• M8x1.25 (thread diameter x thread pitch)
• Tool size 10mm hex head
• Sold individually (1 titanium bolt)
• Length measured underneath head (See image below)
• See below for quick reference bolt fitment guide
• Ultimate tensile strength 950 MPa
• Steel 8.8 grade bolt ultimate tensile strength 830 Mpa
• Titanium features excellent corrosion resistance
• Does not rust like stock steel bolts

JBI Titanium Rainbow Bolt Weights (Approximate)

• M8x1.25-50mm : 11.4 grams
• M8x1.25-45mm : 10.4 grams
• M8x1.25-40mm : 9.4 grams
• M8x1.25x35mm : 9.0 grams
• M8x1.25x30mm : 7.4 grams
• M8x1.25x25mm : 6.4 grams

• 2002-2007 Honda CR125R/250R
• Top triple clamp bolt length 45mm (4 bolts)
• Bottom triple clamp bolt length 45mm (4 bolts)
• Fork axle pinch bolt length 40mm (4 bolts)
• Front brake caliper mount bolt length 40mm (4 bolts)
• Handle bar mount bolt length 35mm (4 bolts)
• 2004-2017 Honda CRF250R

  • Top triple clamp bolt length 45mm (4 bolts)
  • Bottom triple clamp bolt length 45mm (4 bolts)
  • Fork axle pinch bolt length 40mm (4 bolts)
  • Front brake caliper mount bolt length 40mm (2 bolts)
  • Handle bar mount bolt length 35mm (4 bolts)
• 2018-2025 Honda CRF250R/CRF250RX
• Top triple clamp bolt length 45mm (4 bolts)
• Bottom triple clamp bolt length 40mm (4 bolts)
• Fork axle pinch bolt bolt length 40mm (4 bolts)
• Front brake caliper mount bolt length 40mm (2 bolts)
• Handle bar mount bolt length 35mm (4 bolts)
• 2002-2016 Honda CRF450R
• Top triple clamp bolt length 45mm (4 bolts)
• Bottom triple clamp bolt length 45mm (4 bolts)
• Fork axle pinch bolt length 40mm (4 bolts)
• Front brake caliper mount bolt length 40mm (2 bolts)
• Handle bar mount bolt length 35mm (4 bolts)
• 2017-2025 Honda CRF450R/CRF450RX
• Top triple clamp bolt length 45mm (4 bolts)
• Bottom triple clamp bolt length 40mm (4 bolts)
• Fork axle pinch bolt length 40mm (4 bolts)
• Front brake caliper mount bolt length 40mm (2 bolts)
• Handle bar mount bolt length 35mm (4 bolts)

• 2006-2025 Kawasaki KX250F/KX450F & 2021-2025 Kawasaki KX250X/KX450X
• Top triple clamp bolt length 40mm (4 bolts)
• Bottom triple clamp bolt length 45mm (4 bolts)
• Fork axle pinch bolt length 40mm (4 bolts)
• Front brake caliper mount bolt length 40mm (2 bolts)
• Handle bar mount bolt length 35mm (4 bolts)

• 2016-2025 KTM, Husky, & GasGas 125/250/300/350/450/500

• Top triple clamp bolt length 40mm (4 bolts)
• Bottom triple clamp bolt length 50mm (4 bolts)
• Fork axle pinch bolt length 25mm (4 bolts)
• Front brake caliper mount bolt length 30mm (2 bolts)
• Handle bar mount bolt length 25mm (4 bolts)
• KTM & Husqvarna Power Parts Split Triple Clamps
• Top triple clamp bolt length 40mm (4 bolts)
• Bottom triple clamp bolt length 40mm (4 bolts)

• 2006-2025 Yamaha YZ125/250 & YZ250F/YZ450F & YZ125X/YZ250FX/YZ450FX
• Top triple clamp bolt length 35mm (4 bolts)
• Bottom triple clamp bolt length 35mm (4 bolts)
• Fork axle pinch bolt length 35mm (4 bolts)
• Front brake caliper mount bolt length 35mm (2 bolts)
• Handle bar mount bolt length 30mm (4 bolts)

• 2023-2025 Stark Varg MX/EX
• Handlebar clamp bolt length 25mm (4 bolts)
• Brake Caliper bolt length 30mm (2 bolts)
• Fork axle pinch bolt length 35mm (4 bolts)
• Top triple Clamp Bolt length 40mm (4 Bolts)
• Bottom triple clamp bolt length 40mm (4 bolts)

• 2024-2025 Triumph TF 250-X/TF 450-RC Edition
• Fork axle pinch bolt length 35mm (4 bolts)
• Top triple Clamp Bolt length 40mm (4 Bolts)
• Bottom triple clamp bolt length 40mm (4 bolts)

5.16.25
