2023-2024 Honda CRF450R Works Edition (WE)

Fork Spring Rate Recommendations

• The 2023-2024 Honda CRF450R WE stock fork spring rate is 5.0N (0.51kg/mm) with a spring length of 475mm
• The Showa 49mm twin chamber spring fork remains on the CRF450R since 2017.
• The 2023-2024 Honda CRF450R Works Edition WE Showa 49mm twin chamber fork features new stock settings compared to the 2022 Honda CRF450R Showa fork.
• The JBI Spring Rate Chart references the rider weight in casual cloths
• Ride JBI has already accounted for the additional weight of riding gear
• Tap the image below to purchase fork springs for 2023-2024 Honda CRF450R WE:



 Weight references person in regular everyday casual cloths.
This chart accounts for the common additional weight of riding gear
This info relates to stock valving and modified valving

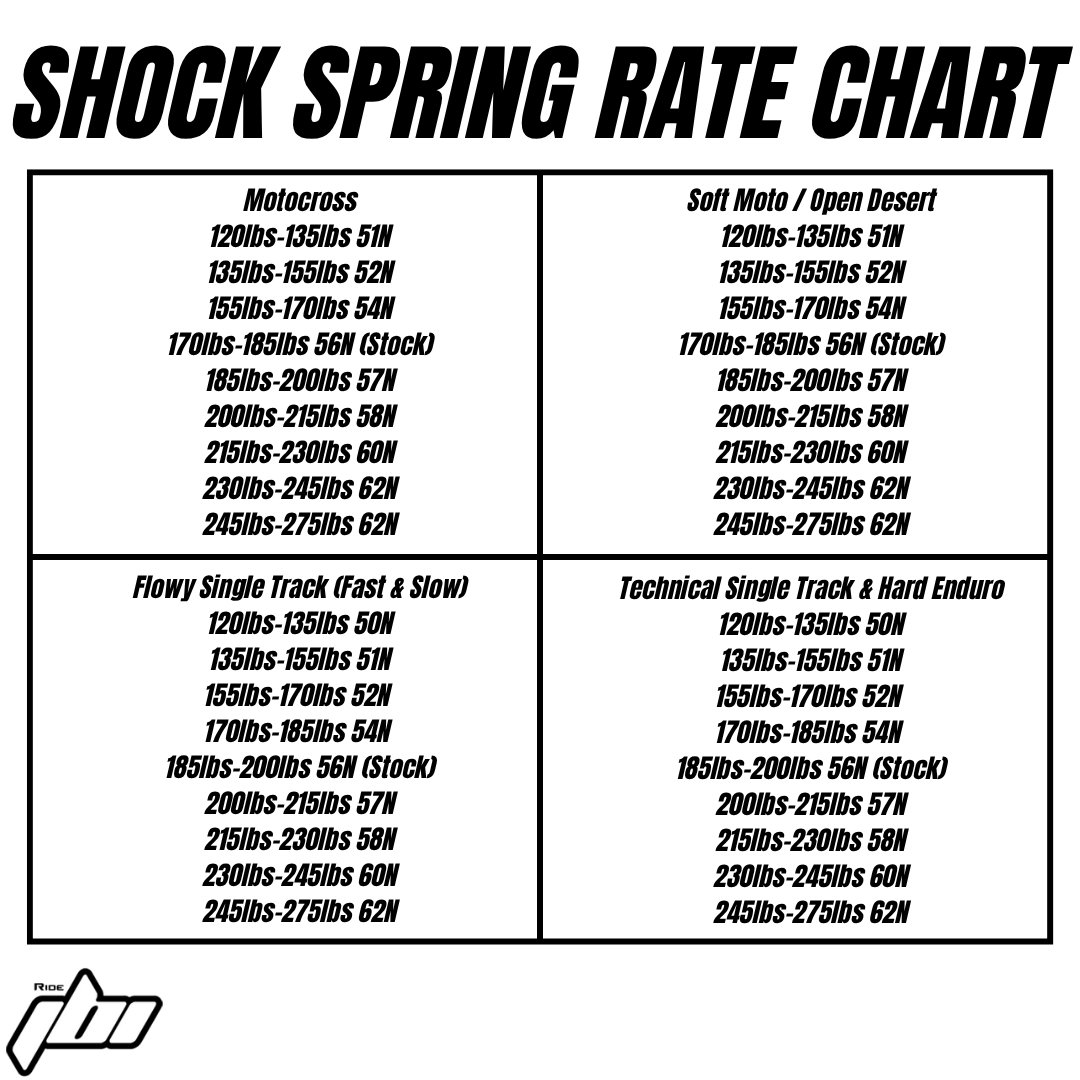

Shock Spring Rate Recommendations

• The 2023-2024 Honda CRF450R WE stock shock spring rate is 56N (5.7kg/mm) with a spring length of 240mm
• The Showa 16mm shock shaft with 50mm main piston remains on the CRF450R since 2017
• For 2023-2024 the Honda CRF450 Works Edition Showa shock features new settings and body revision compared to the 2020 Honda CRF450R.
• The JBI Spring Rate chart refers to the rider in casual cloths
• Ride JBI already accounts for the additional weight of riding gear
• Recommended Rider Sag and Spring Preload values
• Riders that are 6ft or taller use a Rider Sag Range of 102-105mm with 6-10mm spring preload
• Riders that are 5'11" or shorter use a Rider Sag Range of 104-107mm with 6-10mm spring preload
• Tap the image below to purchase a shock spring for the 2023-2024 Honda CRF450R WE:

Weight references person in regular everyday casual cloths.
This chart accounts for the common additional weight of riding gear
This info relates to stock valving and modified valving
