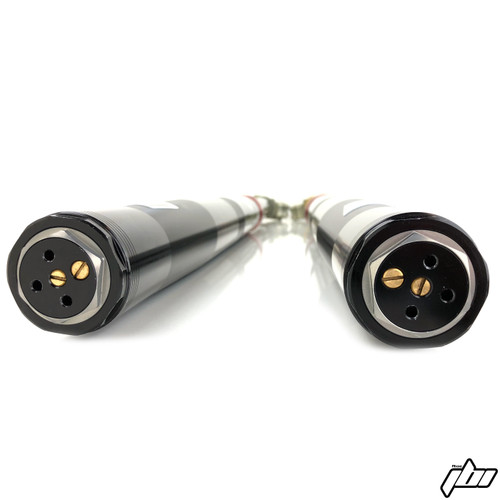

WP Cone Valve Fork Cap and preload adjuster

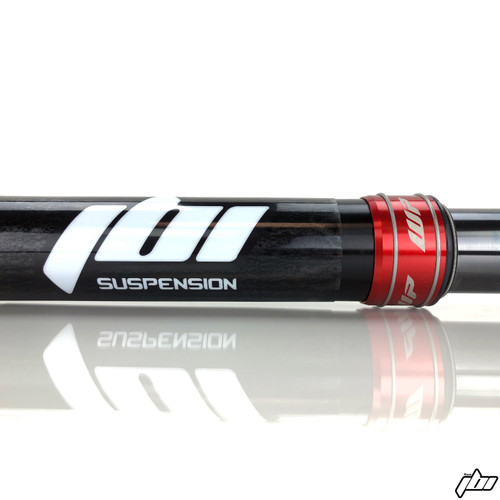

WP Cone Valve Fork Outer tube and seal case

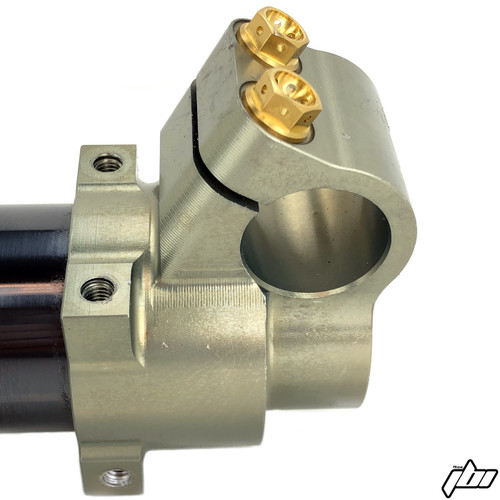

WP Cone Valve Fork Lug Ale brackett

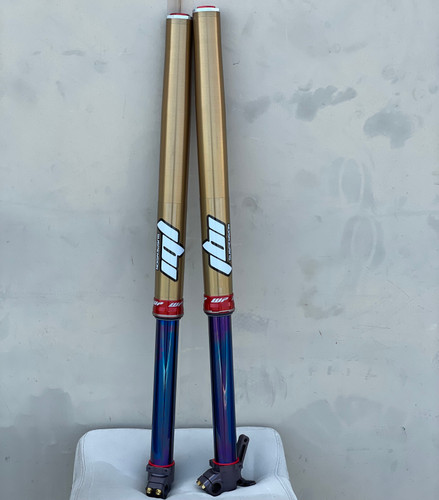

JBI Suspension custom build WP Cone Valve Fork with JBI Suspension coatings and mods

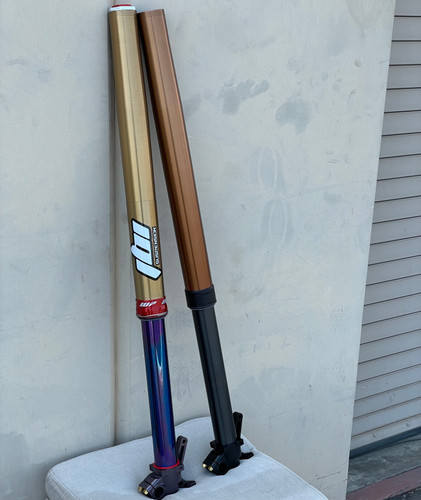

JBI Suspension custom build WP Cone Valve Fork with JBI Suspension coatings DLC and blue and kashima and black anodize

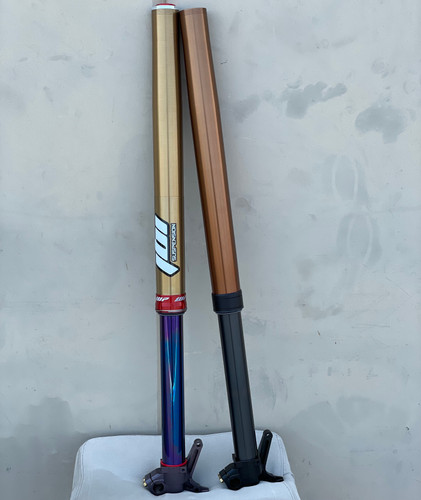

JBI Suspension custom build WP Cone Valve Fork with JBI Suspension coatings DLC and blue and kashima and black anodize

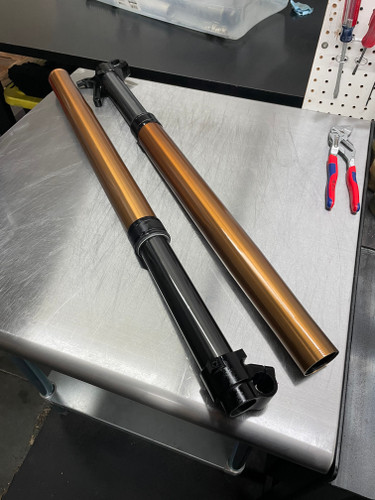

Refurbished WP Cone Valve fork tubes
WP Cone Valve Fork Tech Specs
WP Cone Valve Fork Cap and preload adjuster
WP Cone Valve Fork Outer tube and seal case
WP Cone Valve Fork Lug Ale brackett
JBI Suspension custom build WP Cone Valve Fork with JBI Suspension coatings and mods
JBI Suspension custom build WP Cone Valve Fork with JBI Suspension coatings DLC and blue and kashima and black anodize
JBI Suspension custom build WP Cone Valve Fork with JBI Suspension coatings DLC and blue and kashima and black anodize
Refurbished WP Cone Valve fork tubes

  • Guaranteed Fitment

    Always the correct part

  • 20+ Years Experience

    Tested, Tuned, & Developed

  • Domestic Shipping

    All 50 States

WP Cone Valve Fork Tech Specs

(No reviews) Write a Review
Description

WP Cone Valve Fork Tech Specs   /   WP XACT Pro 7548 Fork Tech Specs

  • Inner fork tube OD: 48mm
  • Damper rod OD: 12mm
  • Pressure spring rates: 8-20N/mm
  • Fork spring dimensions: 43.5 OD x 485mm long
  • Installed fork spring length with spacers should be 488mm long
  • Oil volume range:
    • WP MXMA 4800 Cone Valve Black Forks: 350-420cc
    • WP XACT Pro 7548 Cone Valve Silver Forks: 350-445cc
  • Oil weight: 4wt or 5wt
  • Compression adjuster: 30 clicks
  • Rebound adjuster: 30 clicks
  • Preload adjuster: 22 clicks  (each click is 0.5mm of preload)
  • Base valve specs: 6x30x10   (IDxODxH)
  • Mid valve specs: 6x23x13     (IDxODxH)



WP Cone Valve Fork Pressure Spring Rate Identification Guide

  • 20N/mm pressure spring dimensions
    • Spring length: 114mm  +\-1mm tolerance
    • Coil / wire diameter: 4.19mm  +\-0.02mm
    • Number of coils: 13
  • 18N/mm pressure spring dimensions
    • Spring length: 114mm  +\-1mm tolerance
    • Coil / wire diameter: 4.00mm  +\-0.02mm
    • Number of coils: 13
  • 16N/mm pressure spring dimensions
    • Spring length: 114mm  +\-1mm tolerance
    • Coil / wire diameter: 3.90mm  +\-0.02mm
    • Number of coils: 13
  • 12N/mm pressure spring dimensions
    • Spring length: 114mm  +\-1mm tolerance
    • Coil / wire diameter: 3.65mm  +\-0.02mm
    • Number of coils: 14
