Stark Varg EX

The Varg EX is the most polarizing motocross bike to date. From its elegant looks, strong power, and innovative technology, it's turned heads since the bike's debut. Our job is to amplify the already amazing traits of the bike with our JBI Spec Revalve or JBI Spec DIY Kits. Below you can find our recommend suspension setups and spring rates for the rider's height, weight, and riding ability.

The KYB SSS Spring Fork on the Stark Future Varg EX is similar to the Yamaha YZ and Triumph TF Motocross models.

However the key difference is weight.  The Stark Varg is 25lbs heaver then the YZF with more centralized mass.  This requires firmer springs to support the heaver weight of the Stark Varg.

Stark Varg EX stock fork spring rates

• Soft: 4.4N  (0.47kg/mm) (H Fork Lug Stamp)
• Medium 4.6N  (0.49kg/mm) (J Fork Lug Stamp)
• Firm 4.8N  (0.51kg/mm) (K Fork Lug Stamp)
• During the JBI Spec Suspension development Ride JBI found the oem Stark Varg suggested spring rates to be inaccurate and too soft.
• Tap the image below to purchase fork springs for 2025-2027 Stark Varg EX:






JBI Suspension Fork Spring Rate Recommendations

Motocross
120lbs-135lbs 4.6N
135lbs-155lbs 4.7N
155lbs-170lbs 4.8N
170lbs-185lbs 4.9N
185lbs-200lbs 5.0N
200lbs-215lbs 5.1N
215lbs-230lbs 5.2N
230lbs-245lbs 5.3N
245lbs-275lbs 5.4N

Soft Moto / Open Desert
120lbs-135lbs 4.5N
135lbs-155lbs 4.6N
155lbs-170lbs 4.7N
170lbs-185lbs 4.8N
185lbs-200lbs 4.9N
200lbs-215lbs 5.0N
215lbs-230lbs 5.1N
230lbs-245lbs 5.2N
245lbs-275lbs 5.3N

Flowy Single Track (Fast & Slow)
120lbs-135lbs 4.4N
135lbs-155lbs 4.5N
155lbs-170lbs 4.6N
170lbs-185lbs 4.7N
185lbs-200lbs 4.8N
200lbs-215lbs 4.9N
215lbs-230lbs 5.0N
230lbs-245lbs 5.1N
245lbs-275lbs 5.2N

Technical Single Track & Hard Enduro
120lbs-135lbs 4.3N
135lbs-155lbs 4.4N
155lbs-170lbs 4.5N
170lbs-185lbs 4.6N
185lbs-200lbs 4.7N
200lbs-215lbs 4.8N
215lbs-230lbs 4.9N
230lbs-245lbs 5.0N
245lbs-275lbs 5.1N

Stark Varg EX stock shock spring rates

• Soft: 46N  (5.5kg/mm) (H Fork Lug Stamp)
• Medium 48N  (5.7kg/mm) (J Fork Lug Stamp)
• Firm 50N  (5.9kg/mm) (K Fork Lug Stamp)
• During the JBI Spec Suspension development Ride JBI found the oem Stark Varg suggested spring rates to be inaccurate and too soft.
• Tap the image below to purchase shock springs for 2023-2025 Stark Varg EX:






Motocross
120lbs-135lbs 54N
135lbs-155lbs 56N
155lbs-170lbs 57N
170lbs-185lbs 58N
185lbs-200lbs 60N
200lbs-215lbs 62N
215lbs-230lbs 63N
230lbs-245lbs 64N
245lbs-275lbs 65N
(Recommended rider sag 95-99mm)

Soft Moto / Open Desert
120lbs-135lbs 54N
135lbs-155lbs 56N
155lbs-170lbs 57N
170lbs-185lbs 58N
185lbs-200lbs 60N
200lbs-215lbs 62N
215lbs-230lbs 63N
230lbs-245lbs 64N
245lbs-275lbs 65N
(Recommended rider sag 97-101mm)

Flowy Single Track (Fast & Slow)
120lbs-135lbs 52N
135lbs-155lbs 54N
155lbs-170lbs 56N
170lbs-185lbs 57N
185lbs-200lbs 58N
200lbs-215lbs 60N
215lbs-230lbs 62N
230lbs-245lbs 63N
245lbs-275lbs 64N
(Recommended rider sag 99-103mm)

Technical Single Track & Hard Enduro
120lbs-135lbs 52N
135lbs-155lbs 54N
155lbs-170lbs 56N
170lbs-185lbs 57N
185lbs-200lbs 58N
200lbs-215lbs 60N
215lbs-230lbs 62N
230lbs-245lbs 63N
245lbs-275lbs 63N
(Recommended rider sag 100-104mm)

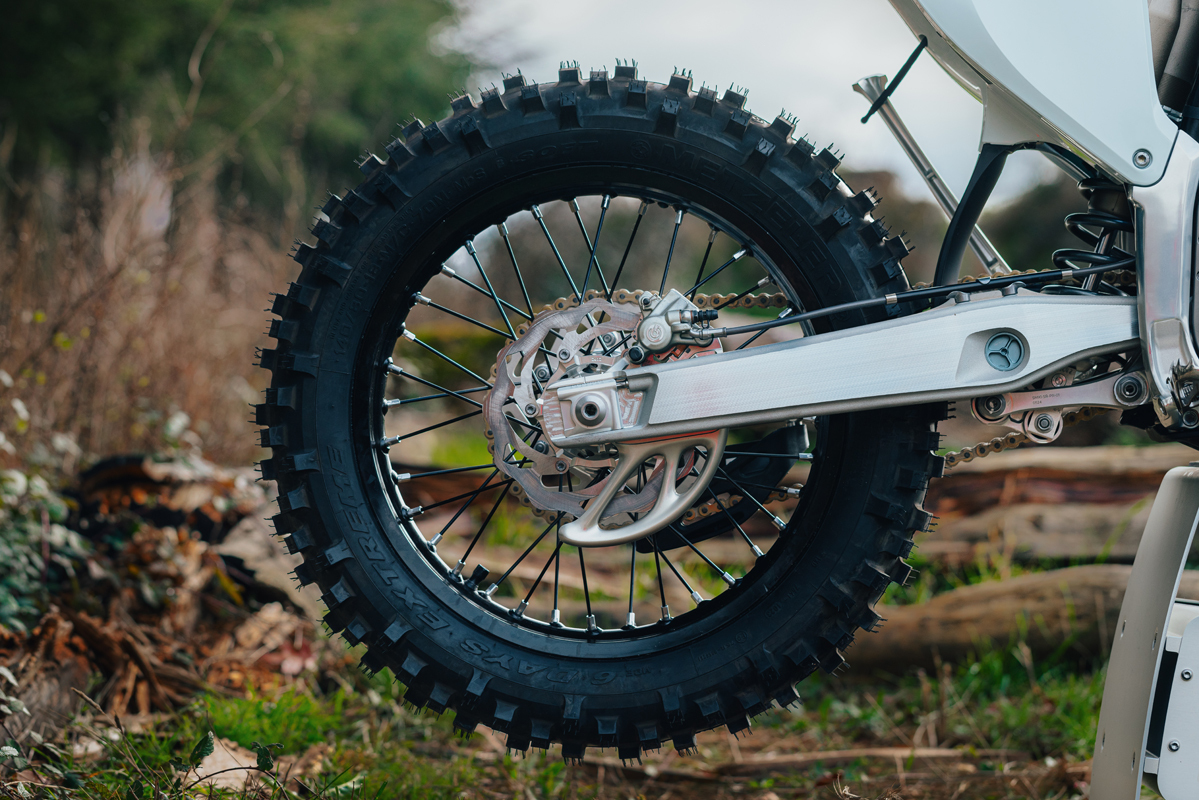

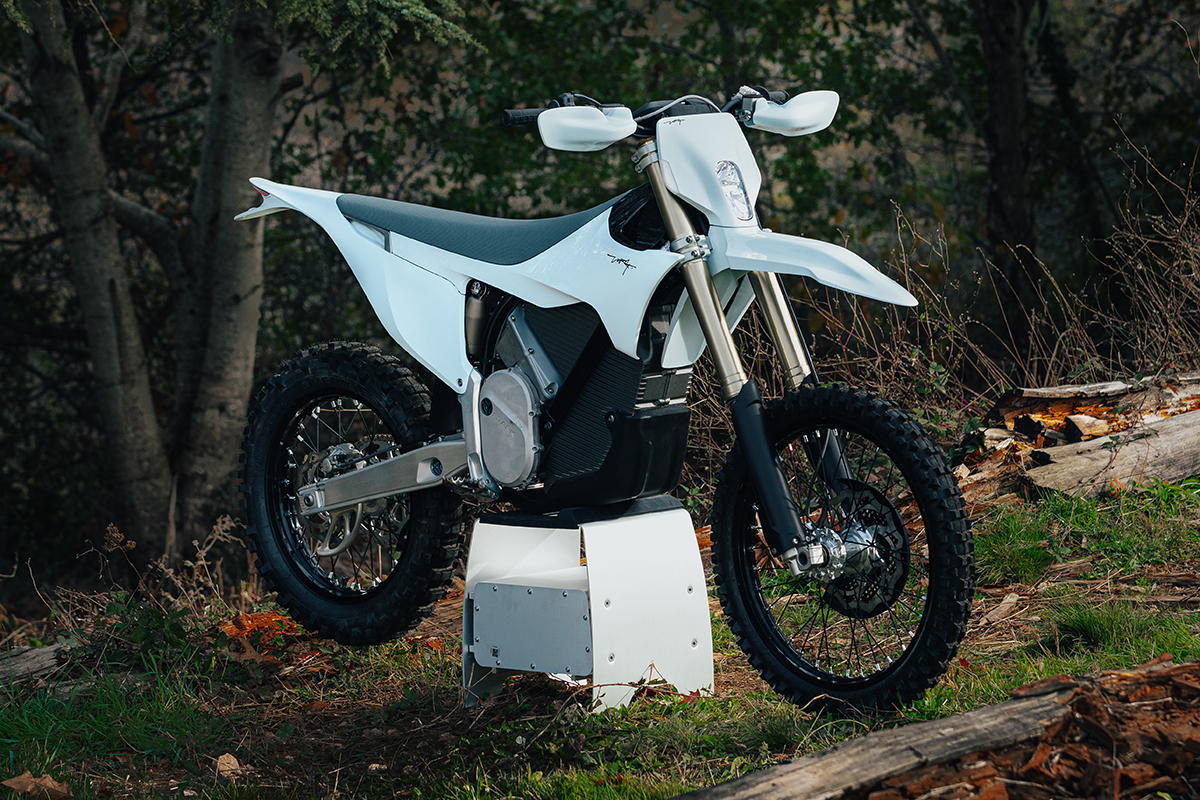

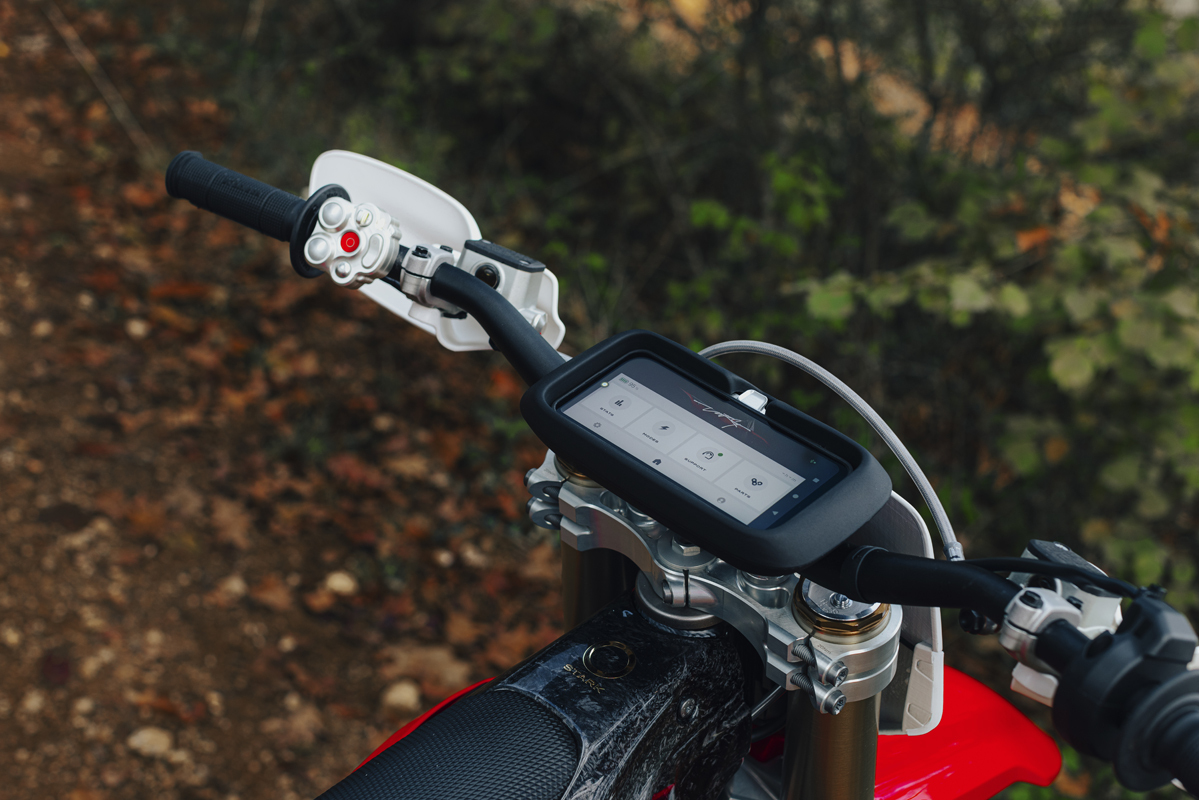

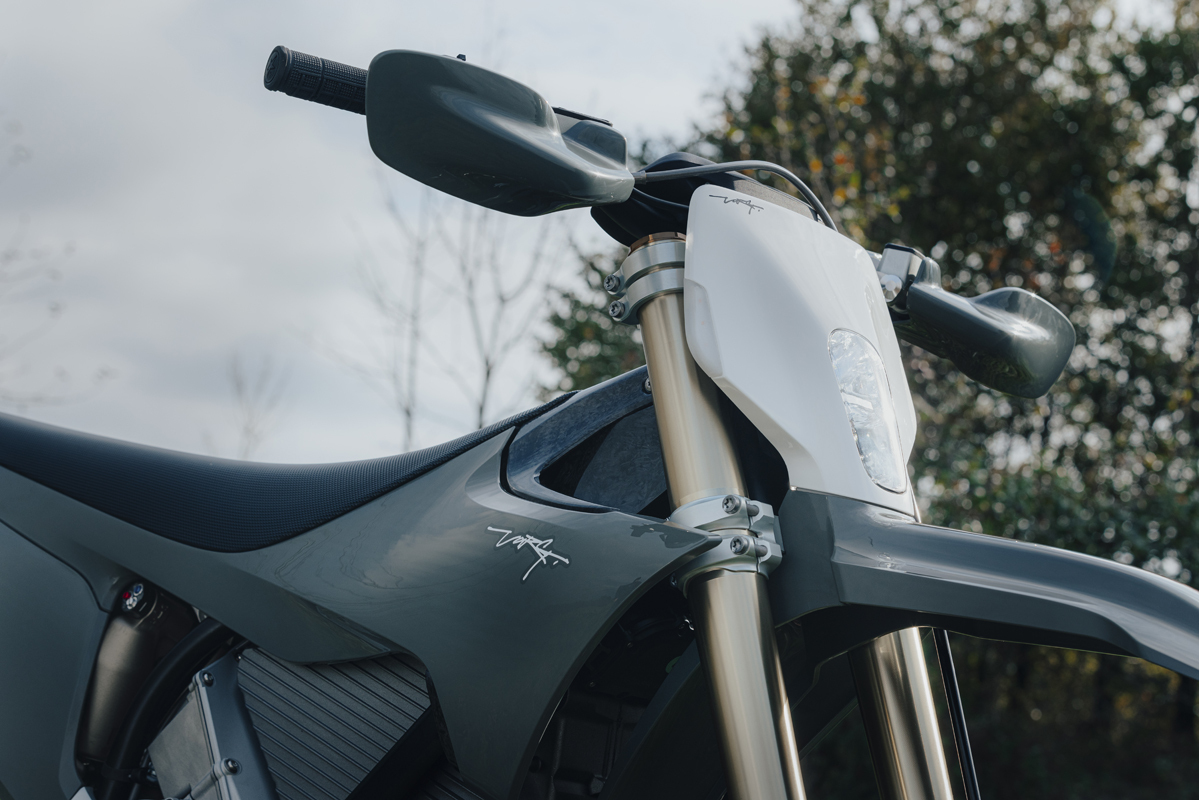

Stark Varg EX Photos
