2006-2021 Yamaha YZ250
2006-2021 Yamaha YZ250
Product Description
2006-2021 Yamaha YZ250

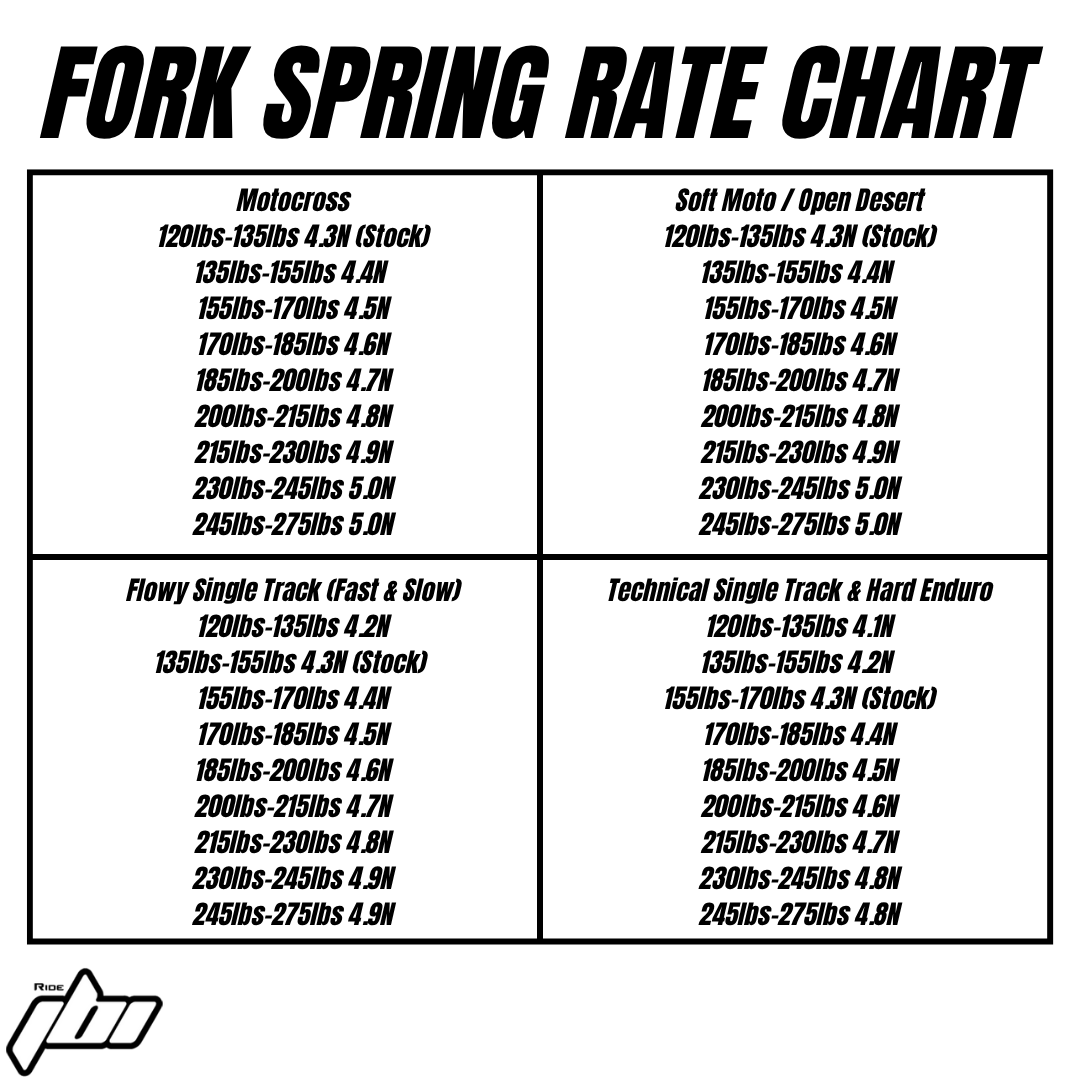

Fork Spring Rate Recommendations
- The 2006-2021 Yamaha YZ250 stock fork spring rate is 4.3N (0.44kg/mm) with a spring length of 455mm.
- The KYB SSS Gen 1 spring fork remains on the YZ250 since 2006 to 2021.
- Tap the image below to purchase fork springs for 2006-2021 Yamaha YZ250:
| Motocross 120lbs-135lbs 4.3N (Stock) 135lbs-155lbs 4.4N 155lbs-170lbs 4.5N 170lbs-185lbs 4.6N 185lbs-200lbs 4.7N 200lbs-215lbs 4.8N 215lbs-230lbs 4.9N 230lbs-245lbs 5.0N 245lbs-275lbs 5.0N |
Soft Moto / Open Desert 120lbs-135lbs 4.3N (Stock) 135lbs-155lbs 4.4N 155lbs-170lbs 4.5N 170lbs-185lbs 4.6N 185lbs-200lbs 4.7N 200lbs-215lbs 4.8N 215lbs-230lbs 4.9N 230lbs-245lbs 5.0N 245lbs-275lbs 5.0N |
| Flowy Single Track (Fast & Slow) 120lbs-135lbs 4.2N 135lbs-155lbs 4.3N (Stock) 155lbs-170lbs 4.4N 170lbs-185lbs 4.5N 185lbs-200lbs 4.6N 200lbs-215lbs 4.7N 215lbs-230lbs 4.8N 230lbs-245lbs 4.9N 245lbs-275lbs 4.9N |
Technical Single Track & Hard Enduro 120lbs-135lbs 4.1N 135lbs-155lbs 4.2N 155lbs-170lbs 4.3N (Stock) 170lbs-185lbs 4.4N 185lbs-200lbs 4.5N 200lbs-215lbs 4.6N 215lbs-230lbs 4.7N 230lbs-245lbs 4.8N 245lbs-275lbs 4.8N |
Weight references person in regular everyday casual cloths.
This chart accounts for the common additional weight of riding gear
This info relates to stock valving and modified valving

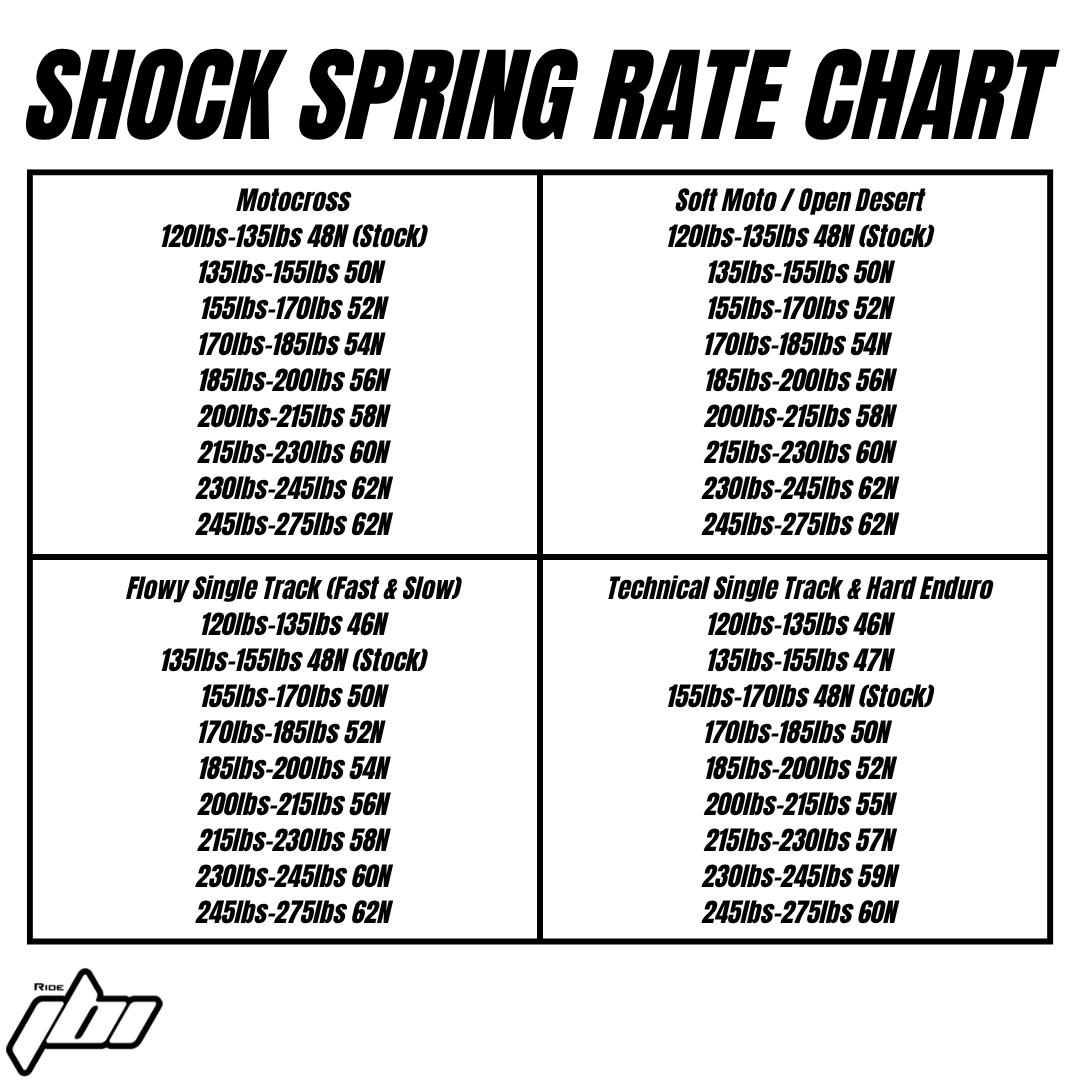

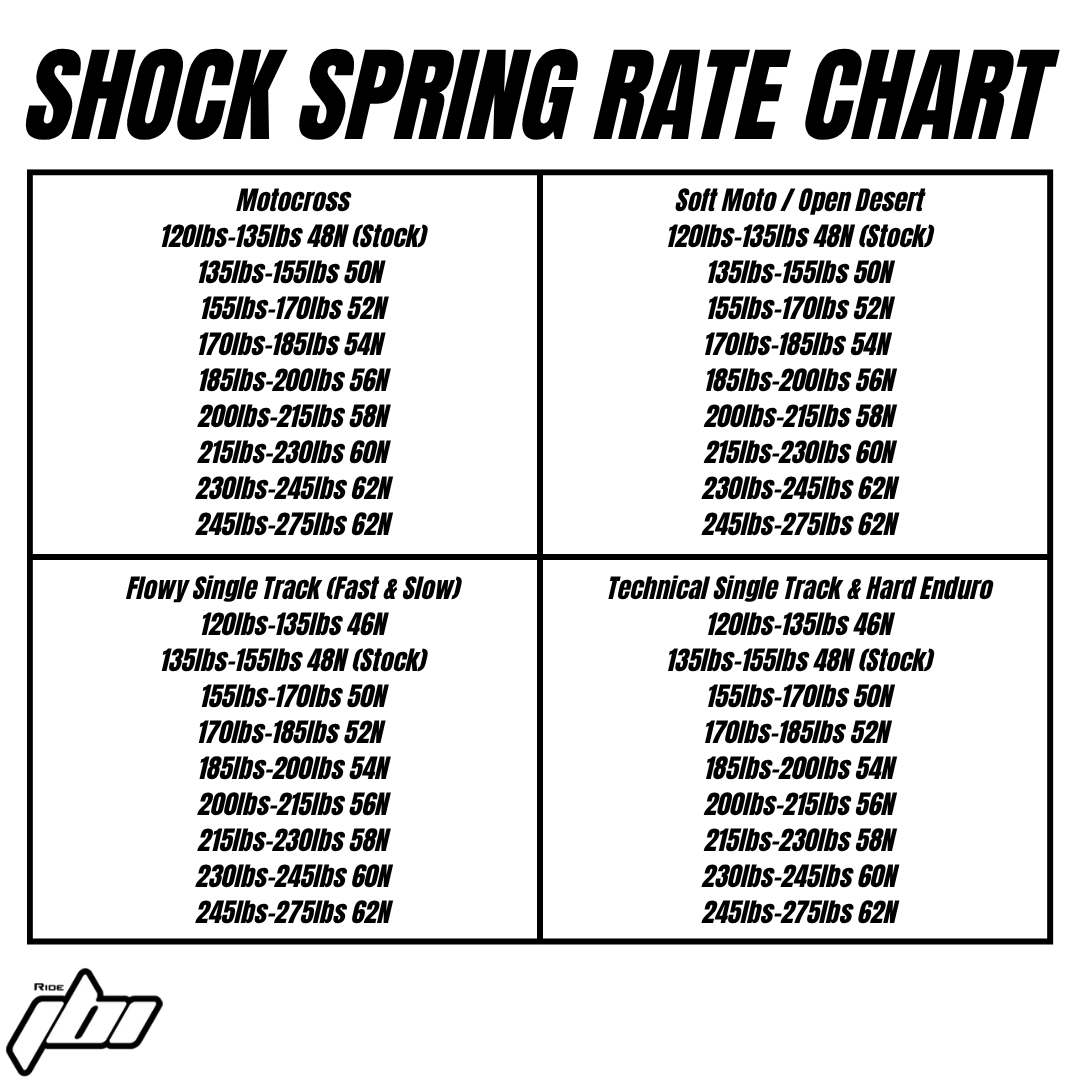

Shock Spring Rate Recommendations
- The 2006-2021 Yamaha YZ250 stock shock spring rate is 48N (4.9kg/mm) with a spring length of 270mm
- The KYB 18mm shock shaft with 46mm main piston remains on the YZ250
- Click here to purchase 2006-2021 Yamaha YZ250 Shock Springs Here:
| Motocross 120lbs-135lbs 48N (Stock) 135lbs-155lbs 50N 155lbs-170lbs 52N 170lbs-185lbs 54N 185lbs-200lbs 56N 200lbs-215lbs 58N 215lbs-230lbs 60N 230lbs-245lbs 62N 245lbs-275lbs 62N |
Soft Moto / Open Desert 120lbs-135lbs 48N (Stock) 135lbs-155lbs 50N 155lbs-170lbs 52N 170lbs-185lbs 54N 185lbs-200lbs 56N 200lbs-215lbs 58N 215lbs-230lbs 60N 230lbs-245lbs 62N 245lbs-275lbs 62N |
| Flowy Single Track (Fast & Slow) 120lbs-135lbs 46N 135lbs-155lbs 48N (Stock) 155lbs-170lbs 50N 170lbs-185lbs 52N 185lbs-200lbs 54N 200lbs-215lbs 56N 215lbs-230lbs 58N 230lbs-245lbs 60N 245lbs-275lbs 62N |
Technical Single Track & Hard Enduro 120lbs-135lbs 46N 135lbs-155lbs 47N 155lbs-170lbs 48N (Stock) 170lbs-185lbs 50N 185lbs-200lbs 52N 200lbs-215lbs 55N 215lbs-230lbs 57N 230lbs-245lbs 59N 245lbs-275lbs 60N |
Weight references person in regular everyday casual cloths.
This chart accounts for the common additional weight of riding gear
This info relates to stock valving and modified valving
