Updated: Fork cartridge rod seal fitment guide chart 2020 models

Posted by Salpal the shop dog on

Updated: Fork cartridge rod seal fitment guide chart 2020 models
KYB SSS  -  Showa 49mm twin chamber   -   WP AER48

The fork cartridge rod seal product page has been updated with the following 2020 model motorcycles with KYB, Showa, & WP suspension.

2020 Suzuki RMZ250 & 2020 Suzuki RMZ450
2020 Kawasaki KX250 & 2020 Kawasaki KX450
2020 Honda CRF250R & 2020 Honda CRF450R
2020 Yamaha YZ125, 2020 Yamaha YZ250, 2020 Yamaha YZ250X, 2020 Yamaha YZ250F, 2020 Yamaha YZ250FX, 2020 Yamaha YZ450F, 2020 Yamaha YZ450FX

Fork Cartridge Seal

  • Seals around the cartridge damper rod
    • Anytime you have a seal sliding over a surface it will eventually wear and fail
  • This is the high quality OEM seal replacement
  • Sold individually
  • Allows the fork cartridge to properly build internal pressure
  • Bad fork cartridge seals drastically decrease fork performance and are UNSAFE!
  • See the video below showing what a bad cartridge seal does
  • KYB, Showa, and WP twin chamber forks
  • Honda, Kawasaki, Suzuki, KTM, and Yamahas
  • Most dealers do not list this as a part but instead will try to sell you a complete cartridge cylinder
  • Customers often send in just the fork cartridge for a JBI Fork Cartridge Rebuild
  • Ride JBI procures suspension parts directly from the OEM giving our customers the best price possible

***Comes with seal and backup seal

Fork Cartridge Seal Dimensions (ID x OD x Height)

  • 12.5mm KYB Cartridge Damper Rod Model A (12.5 x 19 x 3.5mm)
  • 12.5mm KYB Cartridge Damper Rod Model B (12.5 x 22.5 x 5mm) & (12.5 x 17 x 2mm)
    • ***This is a two piece seal
  • 12.5mm KYB Cartridge Damper Rod Model C (12.5 x 18 x 3.5mm)
  • 12mm Showa Cartridge Damper Rod Model A (12 x 18 x 3.5mm)
  • 12.5mm Showa Cartridge Damper Rod Model B (12.5 x 18 x 3.5mm)
  • 12.5mm Showa Cartridge Damper Rod Model C (12.5 x 22.5 x 5mm) x (12.5 x 17 x 2mm)
    • ***This is a two piece seal
  • 12mm WP Cartridge Damper Rod (12 x 19 x 4mm)

Fork cartridge rod seal

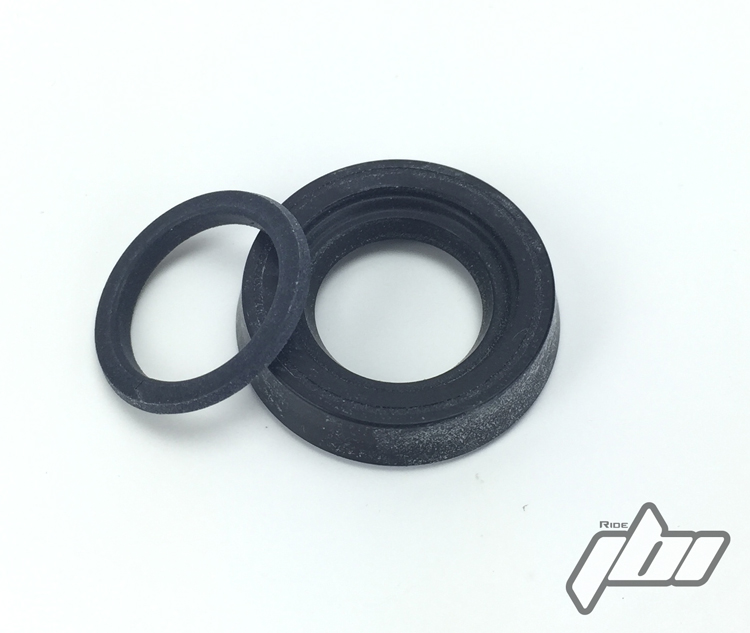

KYB Fork cartridge rod seal two piece

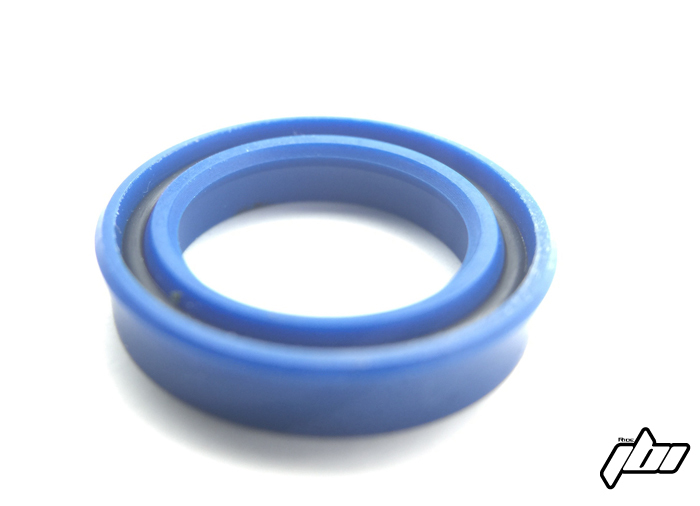

Showa fork cartridge seal
