Ride JBI

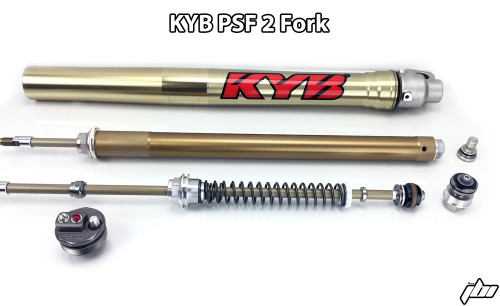

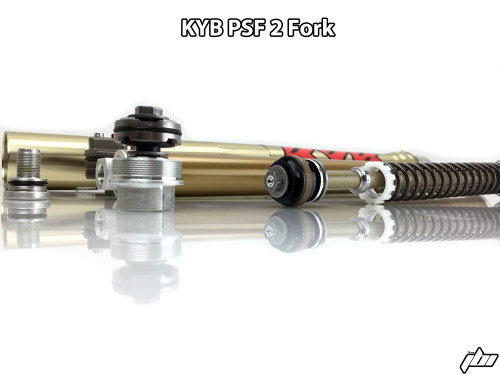

KYB PSF 2 Fork Tech Specs

$1.00

KYB

KYB PSF 2 Fork Tech Specs

$1.00
Share

Product Description

KYB PSF 2 Fork Tech Specs

  • Inner fork tube OD: 48mm
  • Damper rod OD: 12.5mm
  • Oil height: 80-120mm
  • Oil weight: 5wt
  • Low speed rebound adjuster: 49 clicks
  • High speed rebound adjuster: 49 clicks
  • Low speed compression adjuster: 49 clicks
  • High speed compression adjuster: 49 clicks
  • Base valve piston: 8x32x11mm (IDxODxH)
  • Mid valve piston: 8x32x17mm (IDxODxH)
  • Fork Seal: 48x58x8.5mm (IDxODxH)
  • Fork Inner Bushing: 46x48x20 (IDxODxH)
  • Fork Outer Bushing: 48x52x15 (IDxODxH)
  • Air pressure: 35psi   (Changing psi by 2 is similar to changing fork spring from .44kg to .46kg)

Ride JBI's Review of the KYB PSF 2 Fork
The KYB PSF 2 is a cheaper and simpler production air fork that KYB used to replace the KYB PSF 1 air fork, which became the base for the KYB A Kit Air Fork.  Using an open cartridge design with a balance spring KYB created a very simple but decent air fork.  However poor valving and mid valve piston design result in a fork that could be much better.



JBI Suspension Mods Available



10.3.16

Motocross | Off-Road | WORCS | Enduro | Free Riding | Arenacross | Freestyle Moto
