Video: Inside the KYB SSS 48mm Fork

Posted by Salpal the shop dog on

Inside the KYB SSS 48mm Fork aka AOS fork

KYB SSS/AOS Twin Chamber Fork Tech Specs

  • Inner fork tube OD: 48mm
  • Damper rod OD: 12.5mm
  • Free Piston: 10x36x70mm (IDxODxL)
  • Oil volume range: 300-395mm
  • Oil weight: 5wt
  • Compression adjuster: 24 clicks
  • Rebound adjuster: 24 clicks
  • Base valve piston: 6x36x12.5mm (IDxODxH)
  • Mid valve piston: 8x24x15mm (IDxODxH)

Ride JBI's Review of the KYB SSS Twin Chamber ForkSince 2006 the KYB SSS Twin Chamber fork has been highly regarded as a very competitive performing fork. KYB did an excellent job balancing the all the aspects of the fork design to create a smooth plush feeling fork. One common wear item are the plastic free pistons that fatigue and crack. This is another damper that with well placed modifications the fork goes from good to great.

JBI Suspension Mods Available

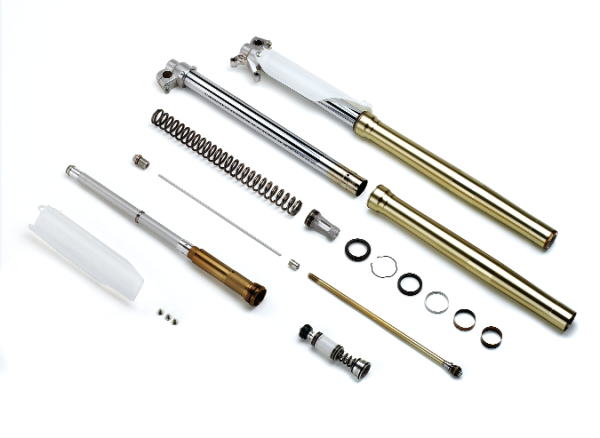

KYB SSS AOS 48mm Fork Dis Assembled

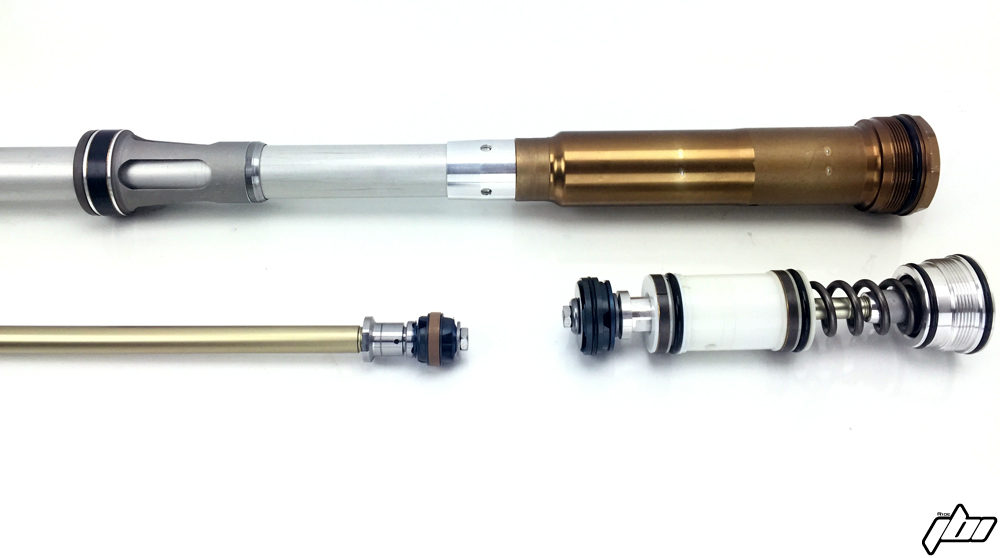

KYB SSS Fork Damping Cartridge Assembly

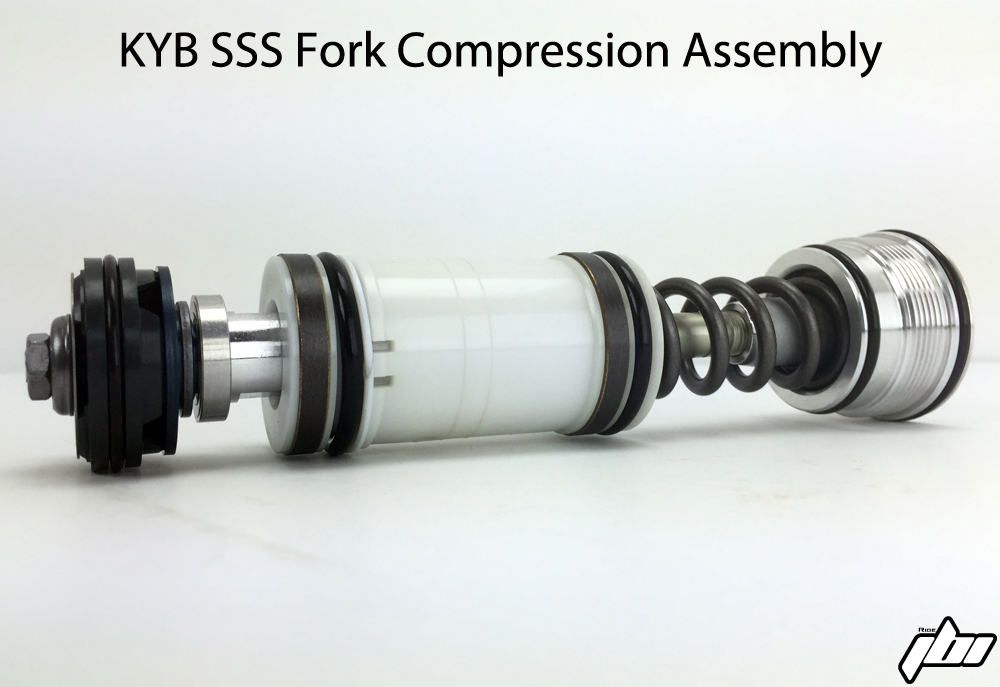

KYB SSS Fork Compression Base Assembly

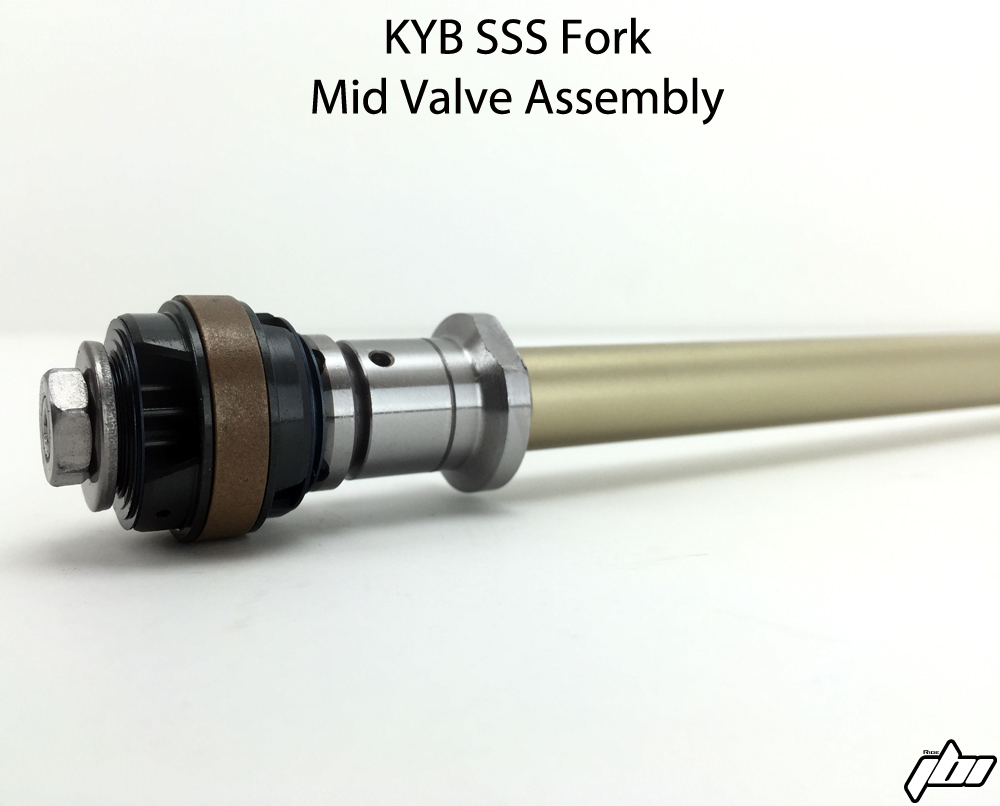

KYB SSS Fork Midvalve Piston Assembly
